Preprocessors

Scripts and flows can include a preprocessor to transform incoming requests before they are passed to the runnable. The preprocessor is only called when the runnable is triggered via a webhook, an HTTP route, an email trigger, a WebSocket trigger, a Kafka trigger, a NATS trigger, a Postgres trigger, an SQS trigger or an MQTT trigger.

This approach is useful for preprocessing arguments differently depending on the trigger before the execution of the runnable. It also separates the handling of arguments according to whether they are called by a trigger or from the UI, which can help you keep a simple schema form in the UI for the runnable.

The preprocessor receives an event parameter, which contains all the main trigger data plus additional metadata. The object always contain a kind field that contains the type of trigger. Other arguments are specific to the trigger type.

You can find more details about the arguments format and the structure of event for each trigger kind in their respective documentation pages, or below in the templates.

Preprocessors can only be written in TypeScript (Bun/Deno) or Python.

Script preprocessor

In scripts, you need to export an additional preprocessor function.

The returned object defines the parameter values passed to main(). For instance, returning { b: 1, a: 2 } in the preprocessor will call main(2, 1), assuming main is defined as main(a: number, b: number). Ensure that the parameter names in main match the keys in the returned object.

Here are some templates for scripts with preprocessors in TypeScript and Python:

TypeScript

export async function preprocessor(
  event:
    | {
        kind: "webhook";
        body: any,
        raw_string: string | null,
        query: Record<string, string>;
        headers: Record<string, string>;
      }
    | {
        kind: "http";
        body: any,
        raw_string: string | null,
        route: string;
        path: string;
        method: string;
        params: Record<string, string>;
        query: Record<string, string>;
        headers: Record<string, string>;
      }
    | {
        kind: "email";
        parsed_email: any,
        raw_email: string,
      }
    | { kind: "websocket"; msg: string; url: string }
    | {
        kind: "kafka";
        payload: string;
        brokers: string[];
        topic: string;
        group_id: string;
      }
    | {
        kind: "nats";
        payload: string;
        servers: string[];
        subject: string;
        headers?: Record<string, string[]>;
        status?: number;
        description?: string;
        length: number;
      }
    | {
        kind: "sqs";
        msg: string,
        queue_url: string;
        message_id?: string;
        receipt_handle?: string;
        attributes: Record<string, string>;
        message_attributes?: Record<
          string,
          { string_value?: string; data_type: string }
        >;
      }
    | {
        kind: "mqtt";
        payload: string,
        topic: string;
        retain: boolean;
        pkid: number;
        qos: number;
        v5?: {
          payload_format_indicator?: number;
          topic_alias?: number;
          response_topic?: string;
          correlation_data?: Array<number>;
          user_properties?: Array<[string, string]>;
          subscription_identifiers?: Array<number>;
          content_type?: string;
        };
      }
    | {
        kind: "gcp";
        payload: string,
        message_id: string;
        subscription: string;
        ordering_key?: string;
        attributes?: Record<string, string>;
        delivery_type: "push" | "pull";
        headers?: Record<string, string>;
        publish_time?: string;
      }
) {
  // you can use a switch statement to handle different trigger kinds
  switch (event.kind) {
    case "webhook":
      return {
        // return the args to be passed to the runnable
      };
    case "http":
      return {
        // return the args to be passed to the runnable
      };
    // ...
    default:
      throw new Error(`Unsupported trigger kind: ${event.kind}`);
  }
}

export async function main(/* main args */) {
  // your code here
}

Python

from typing import TypedDict, Literal, Optional, Union

class WebhookEvent(TypedDict):
    kind: Literal["webhook"]
    body: dict
    raw_string: Optional[str]
    query: dict[str, str]
    headers: dict[str, str]


class HttpEvent(TypedDict):
    kind: Literal["http"]
    body: dict
    raw_string: Optional[str]
    route: str
    path: str
    method: str
    params: dict[str, str]
    query: dict[str, str]
    headers: dict[str, str]


class EmailEvent(TypedDict):
    kind: Literal["email"]
    parsed_email: dict
    raw_email: str


class WebsocketEvent(TypedDict):
    kind: Literal["websocket"]
    msg: str
    url: str


class KafkaEvent(TypedDict):
    kind: Literal["kafka"]
    payload: str
    brokers: list[str]
    topic: str
    group_id: str


class NatsEvent(TypedDict):
    kind: Literal["nats"]
    payload: str
    servers: list[str]
    subject: str
    headers: Optional[dict[str, list[str]]]
    status: Optional[int]
    description: Optional[str]
    length: int


class MessageAttribute(TypedDict):
    string_value: Optional[str]
    data_type: str


class SqsEvent(TypedDict):
    kind: Literal["sqs"]
    msg: str
    queue_url: str
    message_id: Optional[str]
    receipt_handle: Optional[str]
    attributes: dict[str, str]
    message_attributes: Optional[dict[str, MessageAttribute]]


class MqttV5Properties(TypedDict, total=False):
    payload_format_indicator: Optional[int]
    topic_alias: Optional[int]
    response_topic: Optional[str]
    correlation_data: Optional[list[int]]
    user_properties: Optional[list[tuple[str, str]]]
    subscription_identifiers: Optional[list[int]]
    content_type: Optional[str]


class MqttEvent(TypedDict):
    kind: Literal["mqtt"]
    payload: str
    topic: str
    retain: bool
    pkid: int
    qos: int
    v5: Optional[MqttV5Properties]


class GcpEvent(TypedDict):
    kind: Literal["gcp"]
    payload: str
    message_id: str
    subscription: str
    ordering_key: Optional[str]
    attributes: Optional[dict[str, str]]
    delivery_type: Literal["push", "pull"]
    headers: Optional[dict[str, str]]
    publish_time: Optional[str]

Event = Union[
    WebhookEvent,
    HttpEvent,
    EmailEvent,
    WebsocketEvent,
    KafkaEvent,
    NatsEvent,
    SqsEvent,
    MqttEvent,
    GcpEvent,
]


def preprocessor(event: Event):
    # you can use a switch statement to handle different trigger kinds
    match event["kind"]:
        case "webhook":
            return {
                # return the args to be passed to the runnable
            }
        case "http":
            return {
                # return the args to be passed to the runnable
            }
        # ...
        case _:
            raise ValueError(f"Unsupported trigger kind: {event['kind']}")

def main(): # add the parameters you expect from the preprocessor
    # your code here

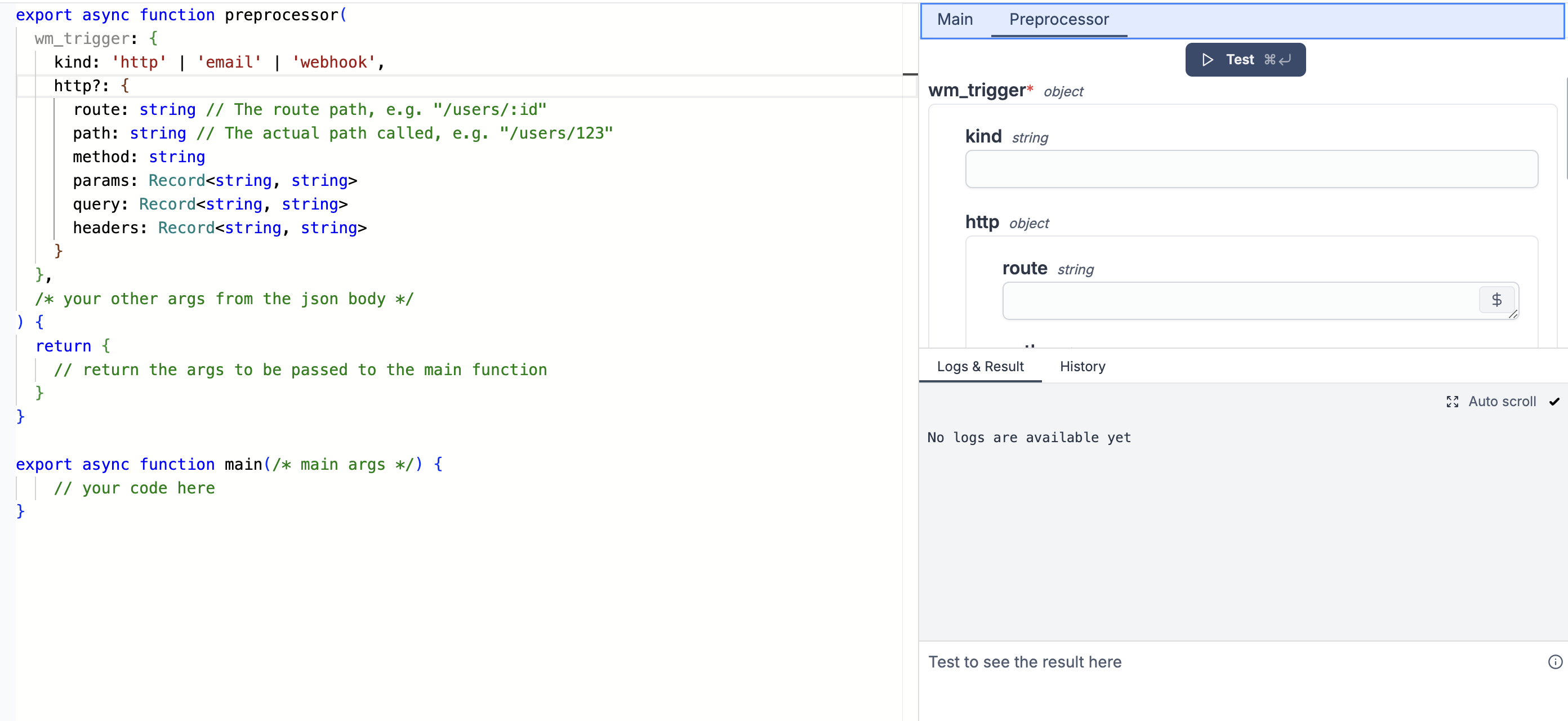

Once a preprocessor is created, you should see a new tab in the right panel of the editor that allows you to test the preprocessor with a sample request.

Flow preprocessor

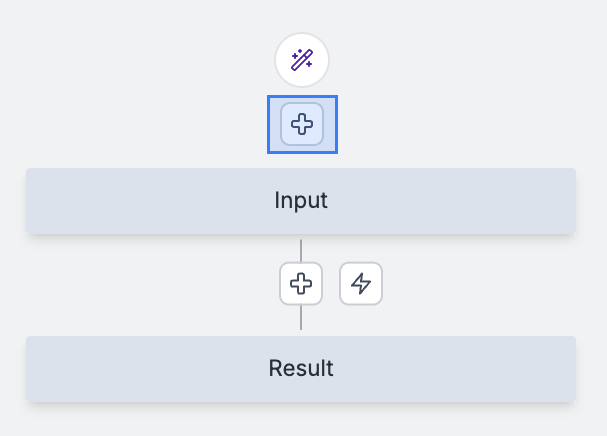

For flows, the idea is similar but the preprocessor is a standalone step that returns only a preprocessor function. To create a preprocessor for a flow, click on the plus button above the Input step:

The returned object determines the parameter values passed to the flow. For instance, returning { b: 1, a: 2 } in the preprocessor will call the flow with a = 2 and b = 1, assuming the flow has two inputs called a and b. Ensure that the input names of the flow match the keys in the returned object.

Below you'll find preprocessor step templates for flows in TypeScript and Python:

TypeScript

export async function preprocessor(
  event:
    | {
        kind: "webhook";
        body: any,
        raw_string: string | null,
        query: Record<string, string>;
        headers: Record<string, string>;
      }
    | {
        kind: "http";
        body: any,
        raw_string: string | null,
        route: string;
        path: string;
        method: string;
        params: Record<string, string>;
        query: Record<string, string>;
        headers: Record<string, string>;
      }
    | {
        kind: "email";
        parsed_email: any,
        raw_email: string,
      }
    | { kind: "websocket"; msg: string; url: string }
    | {
        kind: "kafka";
        payload: string;
        brokers: string[];
        topic: string;
        group_id: string;
      }
    | {
        kind: "nats";
        payload: string;
        servers: string[];
        subject: string;
        headers?: Record<string, string[]>;
        status?: number;
        description?: string;
        length: number;
      }
    | {
        kind: "sqs";
        msg: string,
        queue_url: string;
        message_id?: string;
        receipt_handle?: string;
        attributes: Record<string, string>;
        message_attributes?: Record<
          string,
          { string_value?: string; data_type: string }
        >;
      }
    | {
        kind: "mqtt";
        payload: string,
        topic: string;
        retain: boolean;
        pkid: number;
        qos: number;
        v5?: {
          payload_format_indicator?: number;
          topic_alias?: number;
          response_topic?: string;
          correlation_data?: Array<number>;
          user_properties?: Array<[string, string]>;
          subscription_identifiers?: Array<number>;
          content_type?: string;
        };
      }
    | {
        kind: "gcp";
        payload: string,
        message_id: string;
        subscription: string;
        ordering_key?: string;
        attributes?: Record<string, string>;
        delivery_type: "push" | "pull";
        headers?: Record<string, string>;
        publish_time?: string;
      }
) {
  // you can use a switch statement to handle different trigger kinds
  switch (event.kind) {
    case "webhook":
      return {
        // return the args to be passed to the runnable
      };
    case "http":
      return {
        // return the args to be passed to the runnable
      };
    // ...
    default:
      throw new Error(`Unsupported trigger kind: ${event.kind}`);
  }
}

Python

from typing import TypedDict, Literal, Optional, Union

class WebhookEvent(TypedDict):
    kind: Literal["webhook"]
    body: dict
    raw_string: Optional[str]
    query: dict[str, str]
    headers: dict[str, str]


class HttpEvent(TypedDict):
    kind: Literal["http"]
    body: dict
    raw_string: Optional[str]
    route: str
    path: str
    method: str
    params: dict[str, str]
    query: dict[str, str]
    headers: dict[str, str]


class EmailEvent(TypedDict):
    kind: Literal["email"]
    parsed_email: dict
    raw_email: str


class WebsocketEvent(TypedDict):
    kind: Literal["websocket"]
    msg: str
    url: str


class KafkaEvent(TypedDict):
    kind: Literal["kafka"]
    payload: str
    brokers: list[str]
    topic: str
    group_id: str


class NatsEvent(TypedDict):
    kind: Literal["nats"]
    payload: str
    servers: list[str]
    subject: str
    headers: Optional[dict[str, list[str]]]
    status: Optional[int]
    description: Optional[str]
    length: int


class MessageAttribute(TypedDict):
    string_value: Optional[str]
    data_type: str


class SqsEvent(TypedDict):
    kind: Literal["sqs"]
    msg: str
    queue_url: str
    message_id: Optional[str]
    receipt_handle: Optional[str]
    attributes: dict[str, str]
    message_attributes: Optional[dict[str, MessageAttribute]]


class MqttV5Properties(TypedDict, total=False):
    payload_format_indicator: Optional[int]
    topic_alias: Optional[int]
    response_topic: Optional[str]
    correlation_data: Optional[list[int]]
    user_properties: Optional[list[tuple[str, str]]]
    subscription_identifiers: Optional[list[int]]
    content_type: Optional[str]


class MqttEvent(TypedDict):
    kind: Literal["mqtt"]
    payload: str
    topic: str
    retain: bool
    pkid: int
    qos: int
    v5: Optional[MqttV5Properties]


class GcpEvent(TypedDict):
    kind: Literal["gcp"]
    payload: str
    message_id: str
    subscription: str
    ordering_key: Optional[str]
    attributes: Optional[dict[str, str]]
    delivery_type: Literal["push", "pull"]
    headers: Optional[dict[str, str]]
    publish_time: Optional[str]

Event = Union[
    WebhookEvent,
    HttpEvent,
    EmailEvent,
    WebsocketEvent,
    KafkaEvent,
    NatsEvent,
    SqsEvent,
    MqttEvent,
    GcpEvent,
]


def preprocessor(event: Event):
    # you can use a switch statement to handle different trigger kinds
    match event["kind"]:
        case "webhook":
            return {
                # return the args to be passed to the runnable
            }
        case "http":
            return {
                # return the args to be passed to the runnable
            }
        # ...
        case _:
            raise ValueError(f"Unsupported trigger kind: {event['kind']}")
